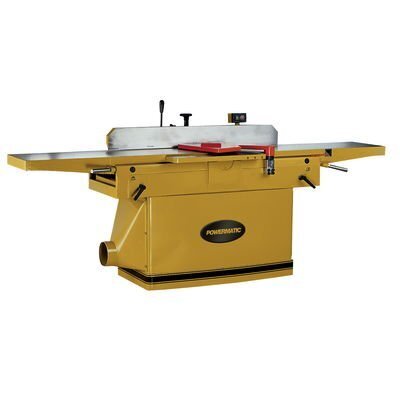

PM9-1791283 Powermatic PJ1696 Jointer 7.5HP 3PH 230/460V

$11,299.99
In stock
Product Details
UPC: 1931
Brand: Powermatic

PJ1696, 16" Jointer, 7.5HP 3PH 230/460V, Helical Cutterhead

Details

This 16" Jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.

Features
  • Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees
  • Full size rabbeting table supports large workpieces for rabbets up to 3/4" deep

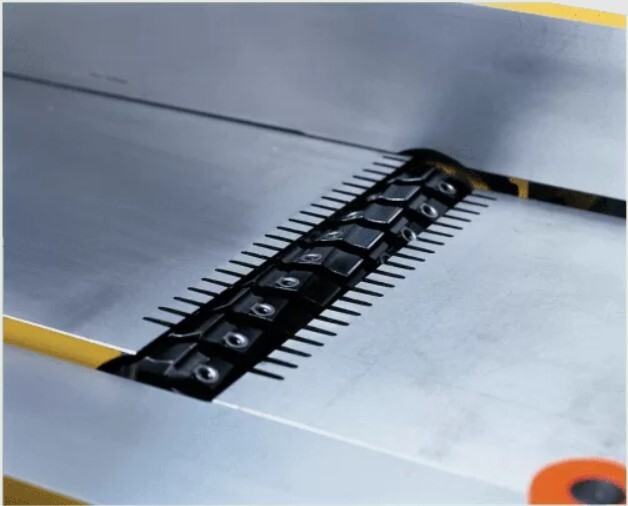

  • Helical cutterhead with 58 two-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change
  • Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
  • Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
  • Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
  • NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.
Specifications
Stock Number PM9-1791283
Cuts Per Minute 20,800
Cutterhead Diameter (In.) 4
Cutterhead Speed (RPM) 5200.0000
Cutting Capacity (W x D) (In.) 16 x 3/4
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 6
Infeed Table Length (In.) 47-1/2
Model Number PJ1696
Motor Power (HP) 7-1/2
Motor Voltage (V.) 230/460
Number of Knives 58
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Max.Rabbeting Capacity (In.) 3/4"
Table Height from Floor (In.) 37-1/2
Type of Cutterhead Helical Head
Maximum Cutting Depth (In.) 1/8"
Share this product with your friends
